5S Audit Dashboard for Excel — Automate Your Lean Audit Tracking
This 5S Audit Dashboard is a fully automated Excel template designed for Lean Manufacturing, continuous improvement teams, and quality professionals who need a clear, professional way to track 5S performance across all 12 months — without building a single formula themselves.
What Is a 5S Audit Dashboard?
A 5S audit dashboard is a structured scoring and reporting tool used in Lean and Kaizen environments to measure how effectively a workplace implements the five pillars: Sort (Seiri), Set in Order (Seiton), Shine (Seiso), Standardize (Seiketsu), and Sustain (Shitsuke). This Excel template turns your raw monthly audit scores into visual KPI charts, automatic grade calculations, and a trackable action log — all in one file.
What’s Included

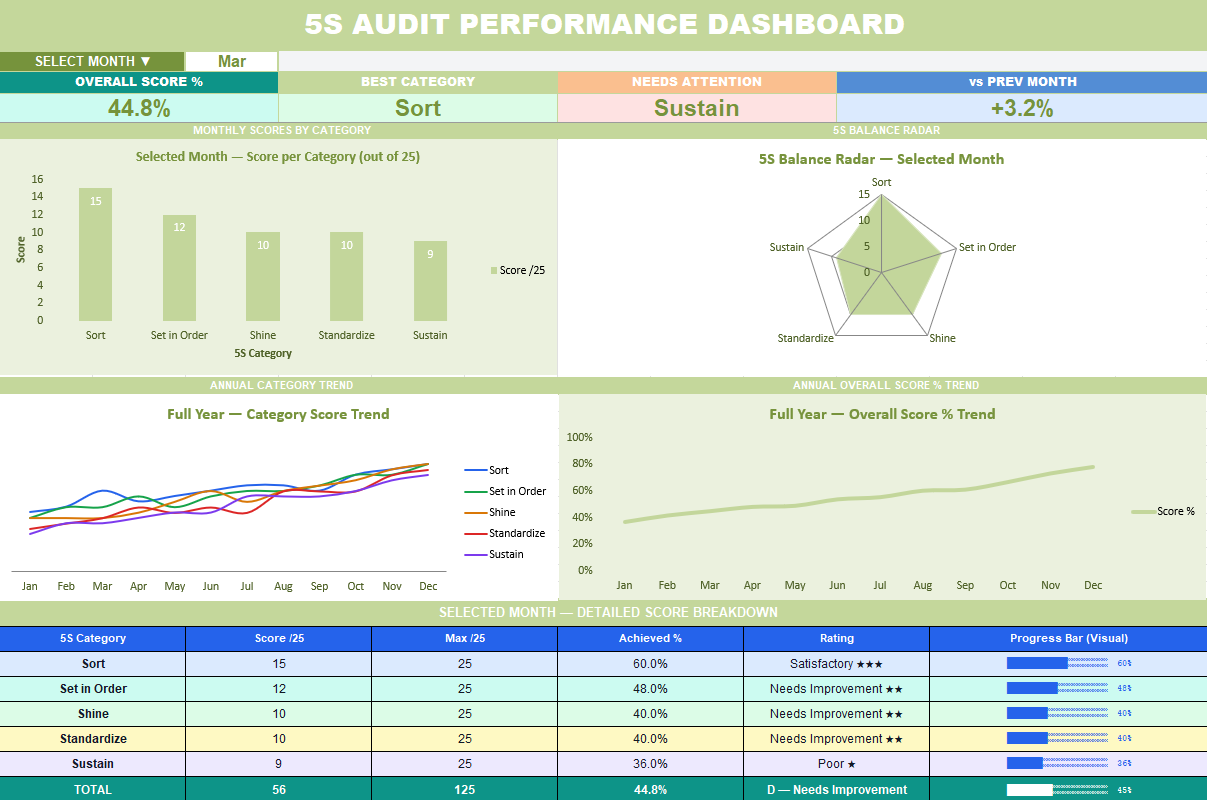

- Automated Dashboard Tab — 4 dynamic charts update instantly when you select a month
- Bar Chart — shows each category score for the selected month at a glance
- Radar / Spider Chart — visualises balance across all 5S pillars
- Annual Trend Line Chart — tracks improvement trajectory for each pillar across 12 months
- Overall Score % Trend — single-line chart showing your total 5S score each month
- 25-Criteria Scoring System — 5 criteria per pillar, scored 1–5 with built-in validation
- 4 KPI Summary Cards — Overall %, Best Category, Weakest Area, Month-on-Month Change
- Progress Bars — visual inline bar showing score % for each category
- Action Tracker Tab — log findings, assign owners, set due dates, track Open/In Progress/Completed

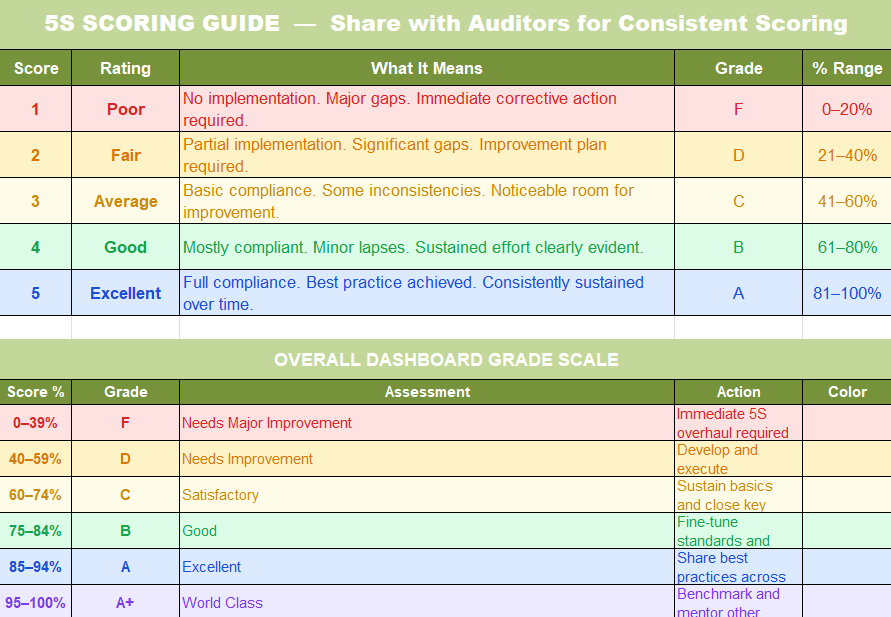

- Rating Scale Tab — scoring guide and grade table (A+ to F) for consistent auditing across teams
- Monthly Summary Tab — auto-calculated summary of all 12 months in one view
Who Is This For?
This template is designed for Lean Managers, Quality Engineers, HSE Officers, Operations Managers, Production Supervisors, ISO Auditors, and Continuous Improvement Teams in any of these industries:
- Manufacturing & Automotive
- Warehousing & Logistics
- Healthcare & Pharmaceuticals
- Food & Beverage Production
- Office & Service Operations
- Construction & Facilities
- Education & Research Labs
No Macros. No VBA. No Excel Expertise Needed.
Everything runs on standard Excel formulas. Open it on any PC or Mac using Microsoft Excel 2016, 2019, 2021, or Microsoft 365. No internet connection required after download. Use it on unlimited projects.
How It Works — 3 Steps

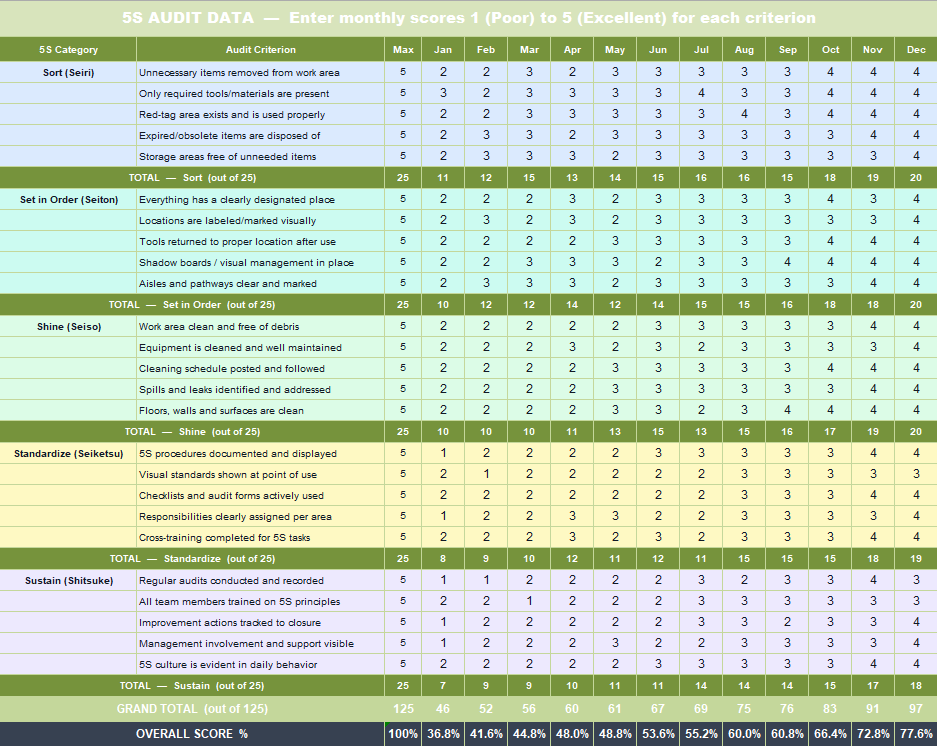

- Open the Audit Data tab — enter scores 1–5 for each of the 25 criteria in the correct month column.
- Return to Dashboard — click the yellow dropdown cell and select any month.
- All charts and KPIs update automatically — share a screenshot or print for management review.
File Details
- Format: Microsoft Excel (.xlsx)
- Compatible with: Excel 2016, 2019, 2021, Microsoft 365 (Windows & Mac)
- Tabs included: Dashboard, Audit Data, Monthly Summary, Chart Data, Rating Scale, Action Tracker
- Delivery: Instant digital download — no physical item shipped
- Licence: Single-user, unlimited projects. Not for resale.
Frequently Asked Questions
What is a 5S Audit Dashboard?
A 5S Audit Dashboard is an automated reporting tool used in Lean Manufacturing and continuous improvement programmes to score, visualise, and track workplace organisation across the five 5S pillars — Sort, Set in Order, Shine, Standardize, and Sustain — on a monthly basis.
Do I need advanced Excel skills to use this template?
No. This template uses only standard Excel formulas — no macros, no VBA, no programming knowledge required. Simply open the file, enter your scores, and all charts and KPIs update automatically. If you can click a dropdown menu, you can use this dashboard.
Which version of Excel does this work with?
This template is compatible with Microsoft Excel 2016, 2019, 2021, and Microsoft 365 on both Windows and Mac. It is not compatible with Google Sheets without significant modification.
Can I use this template for industries other than manufacturing?
Yes. The criteria and category names are fully editable. The template has been designed to work for manufacturing, warehousing, logistics, healthcare, food and beverage, office environments, and any other sector that runs 5S or lean improvement programmes.
Is this a physical product or a digital download?
This is an instant digital download. After purchase, the .xlsx file is immediately available in your account. No physical item is shipped. You can use the file on unlimited devices and projects under a single-user licence.
Can I customise the audit criteria?
Absolutely. The audit criteria in the Audit Data tab are plain text — simply click any cell in column B and type your own criterion. You can rename all 25 criteria to match your internal standards, area names, or industry-specific requirements without breaking any formulas.
